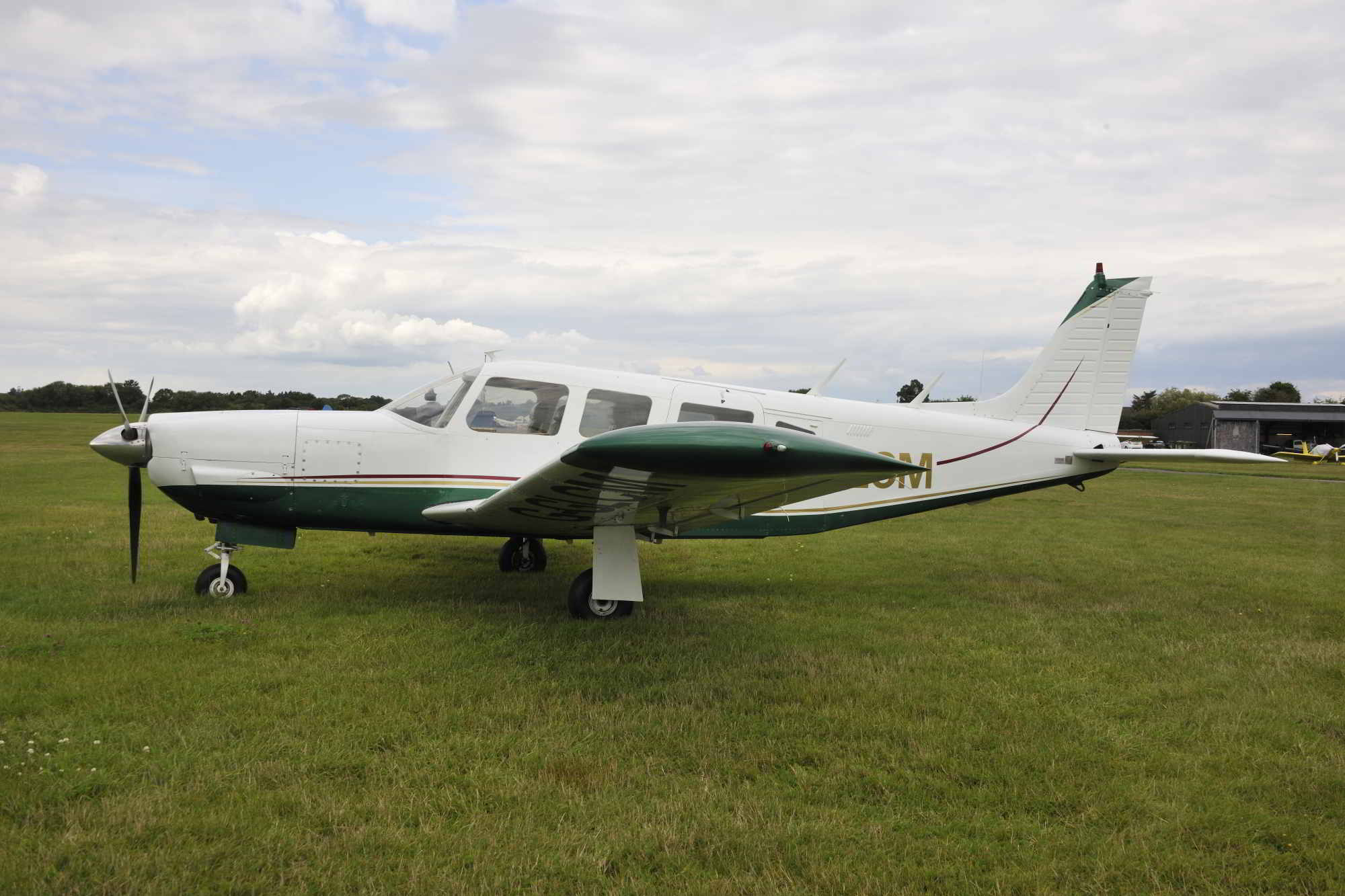

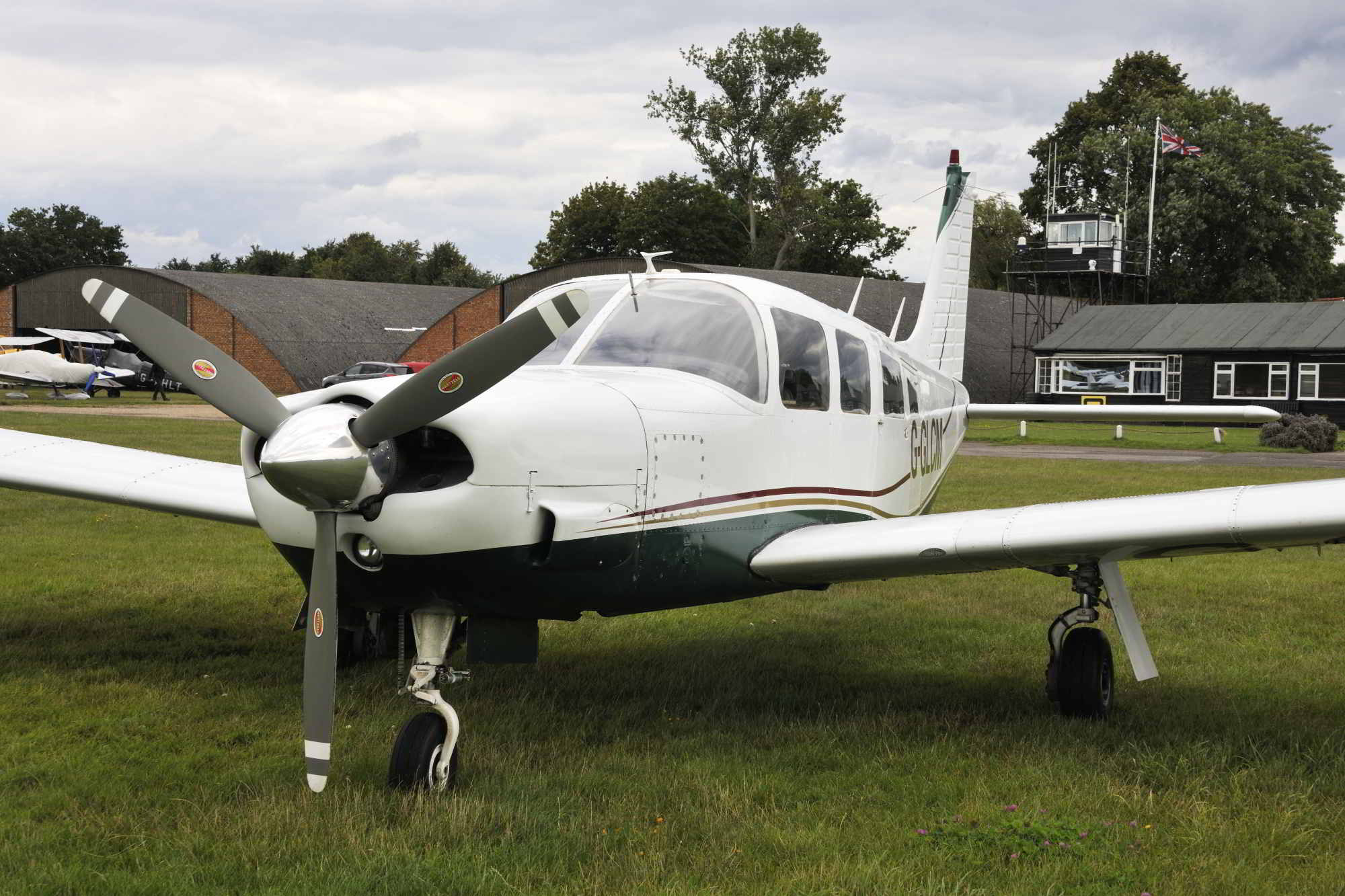

Piper Lance PA-32R
Price : £175,000 GBP
Aircraft Information
Date of manufacture: 1976 Registration: G-GLCM Serial no: 32R-7680422
Propeller – HARTZELL HC-C3YR-1RF/F7663R – 281 hours – 3-blades: SPOH in 2019.
Airframe hours – 4350
ENGINE – Lycoming [IO-540-K1G5D] 300 hp: Approx 420 hrs SMOH Lycoming Factory Overhaul in 2017

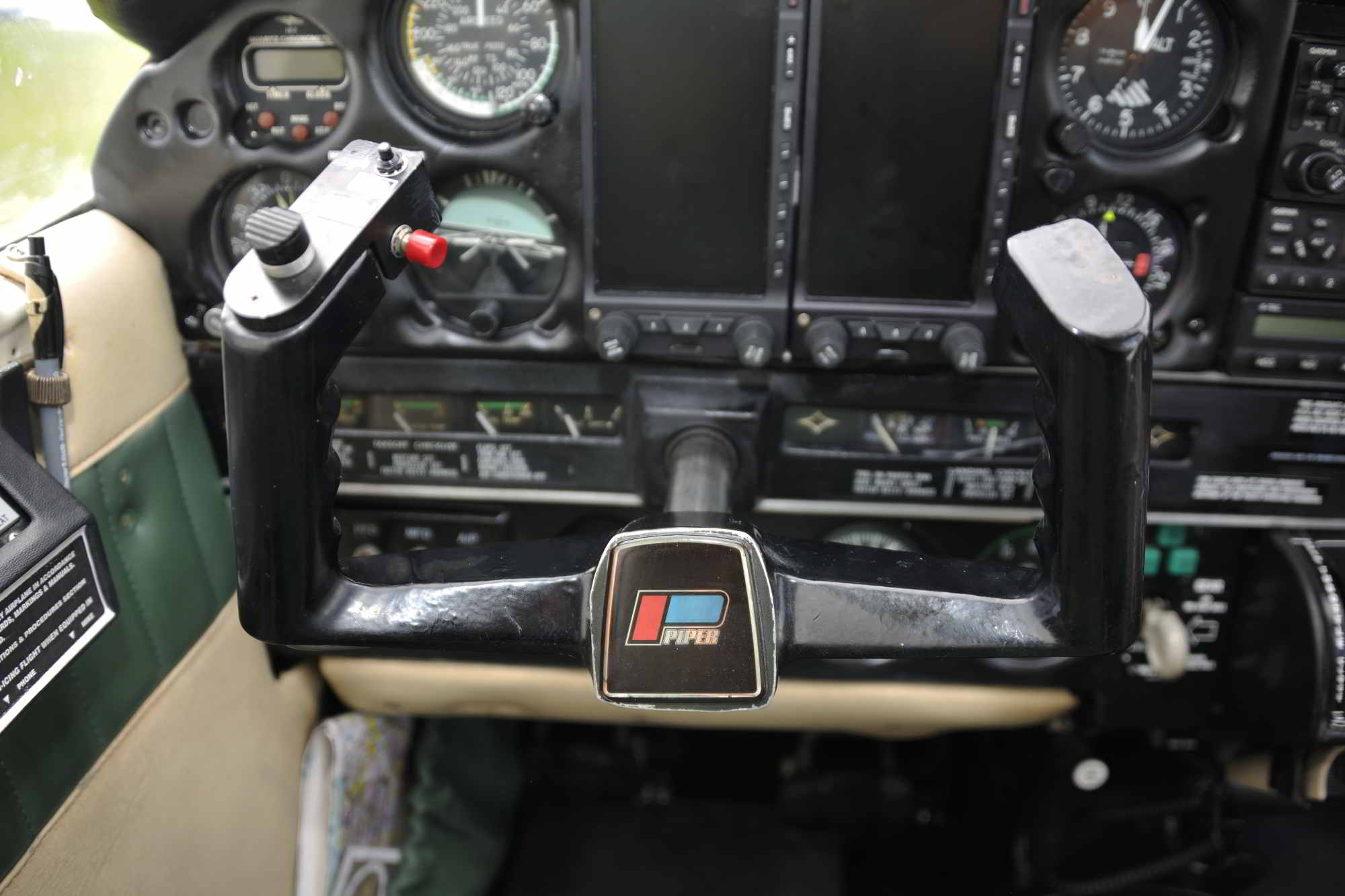

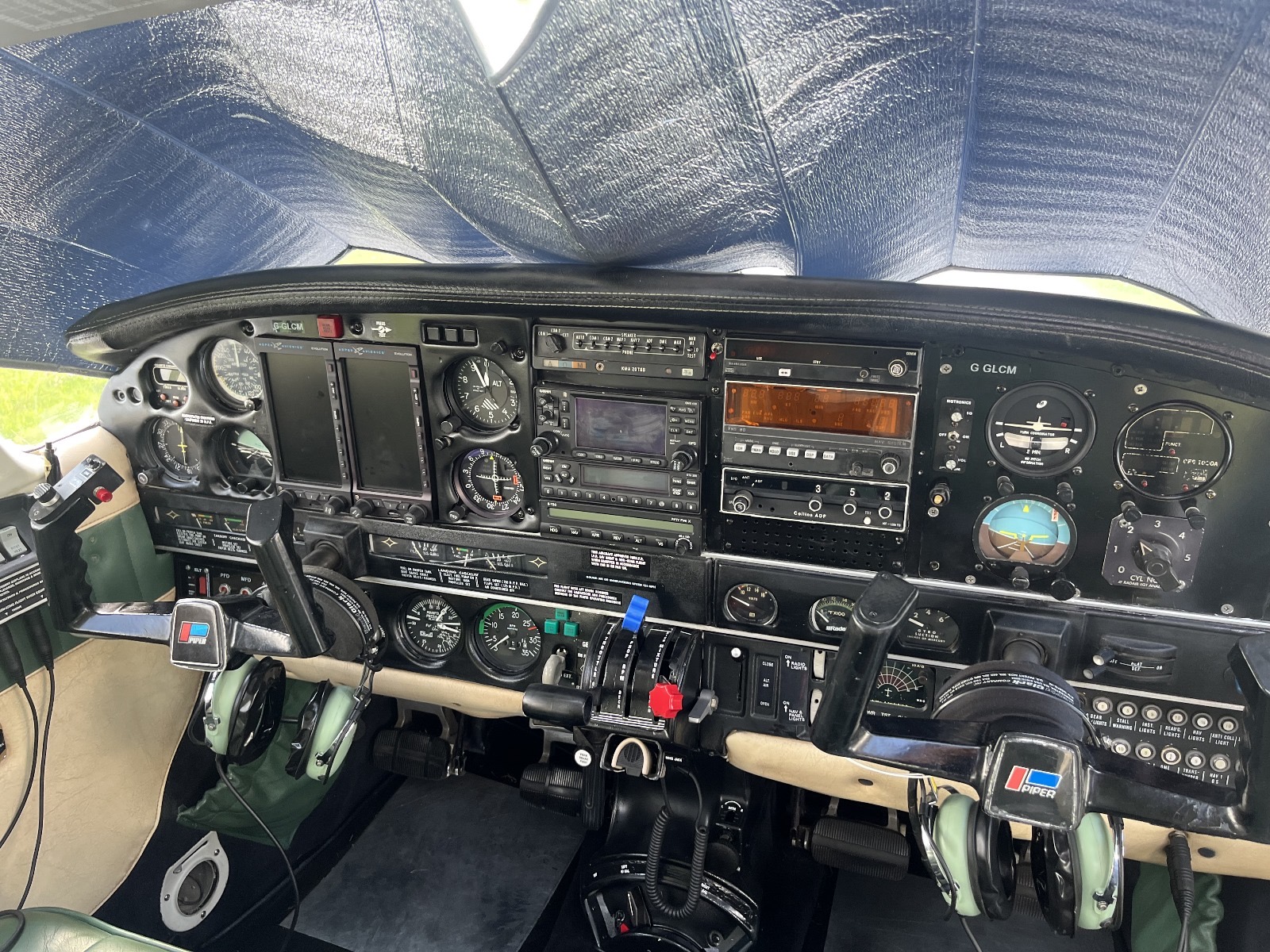

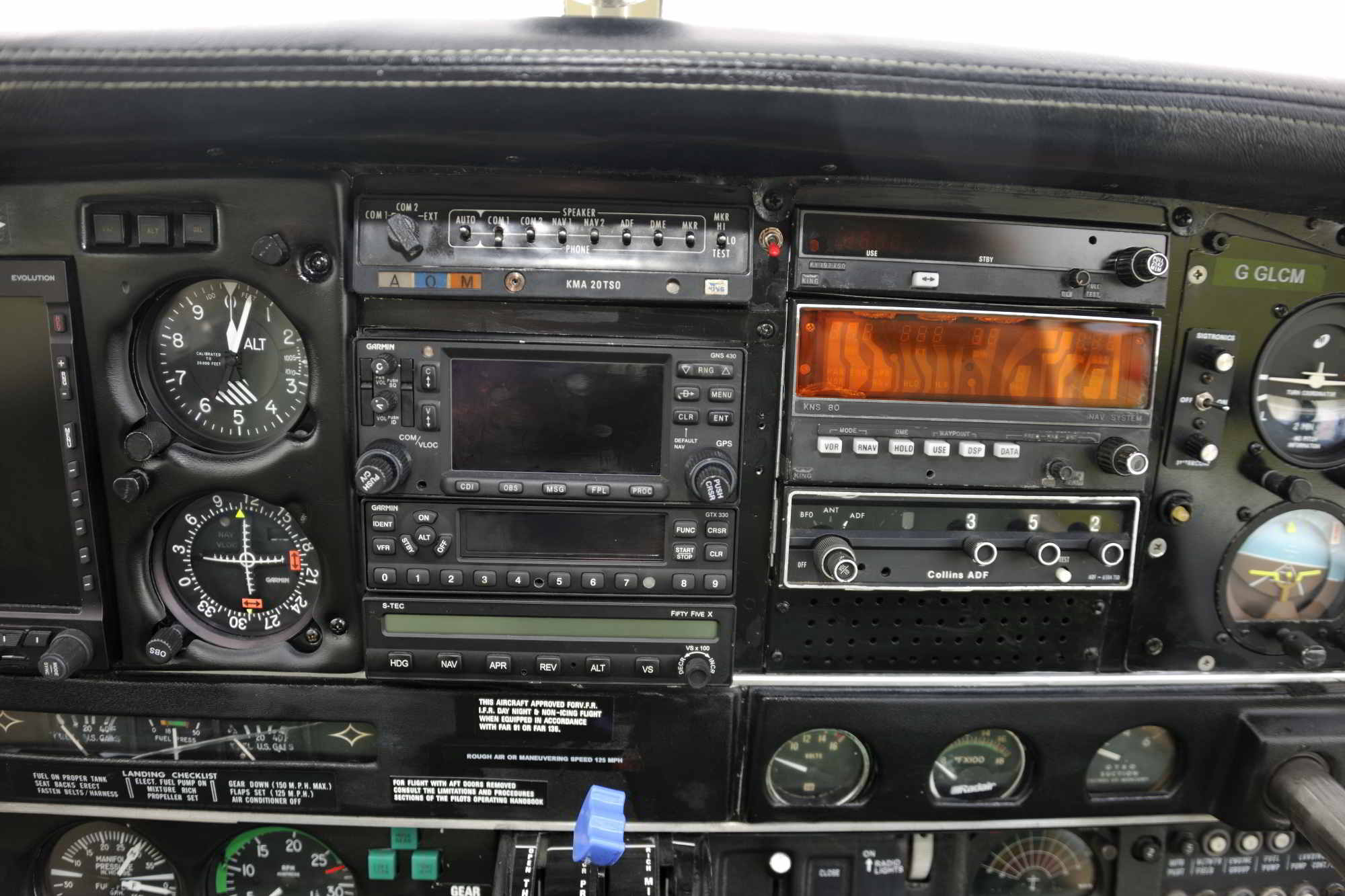

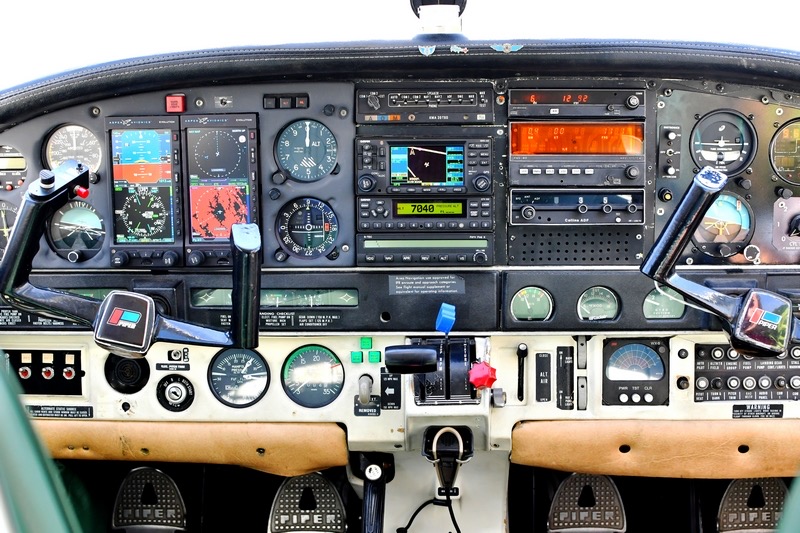

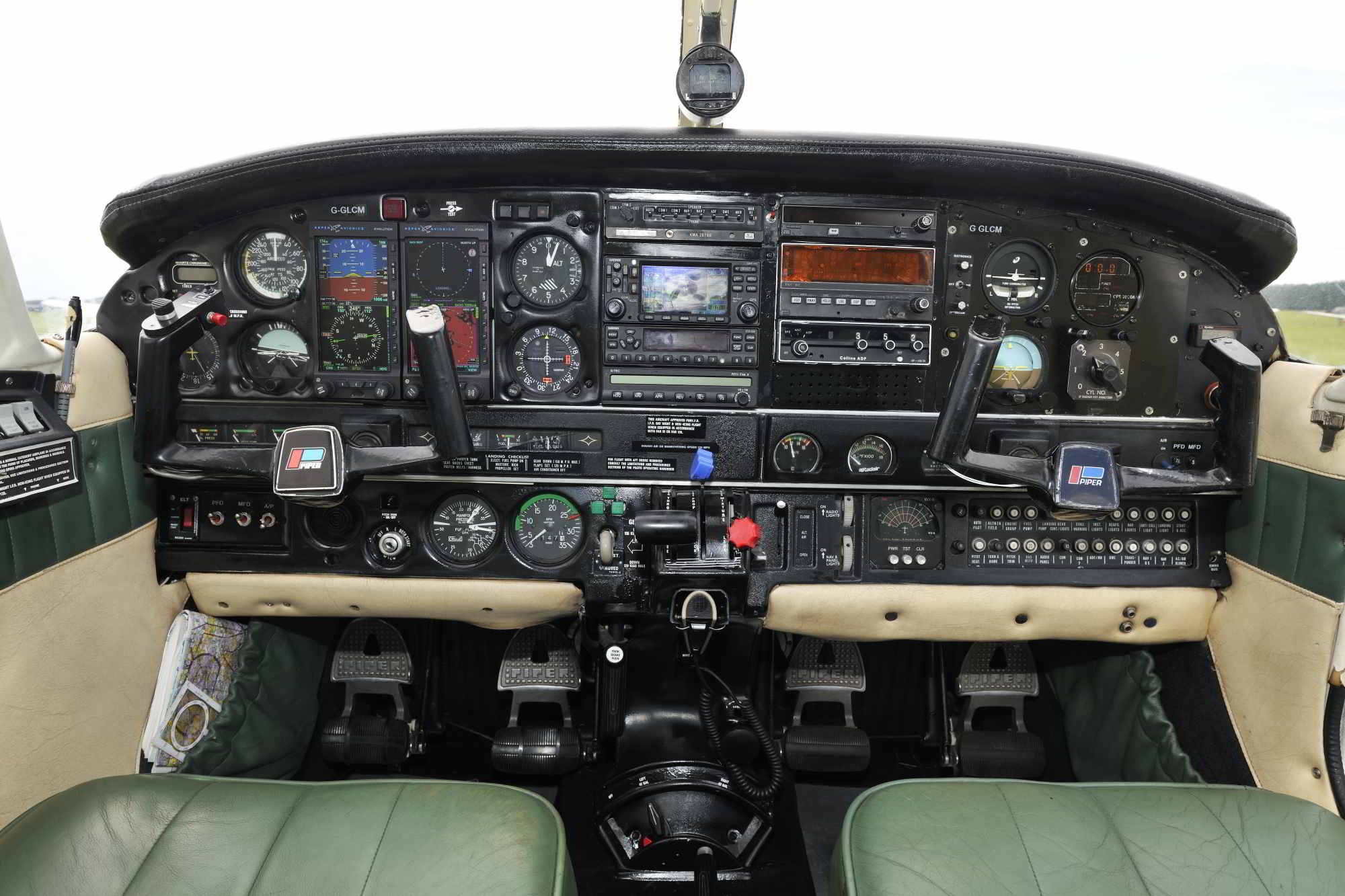

Avionics
ASPEN – PFD/MFD: Aspen EFD-1000/EFD-500
COM1-NAV1-GPS1: Garmin GNS-430 [WAAS]
COM2: BendixKing KY-197 [25 kHz] AUDIO: King KMA-20 TSO AUTOPILOT: STEC-55X TRANSPONDER: Garmin GTX-330 [S Mode] STORMSCOPE: WX-8 DME: BendixKing KNS-80 ADF: Collins ADF-650A TSO
Extras

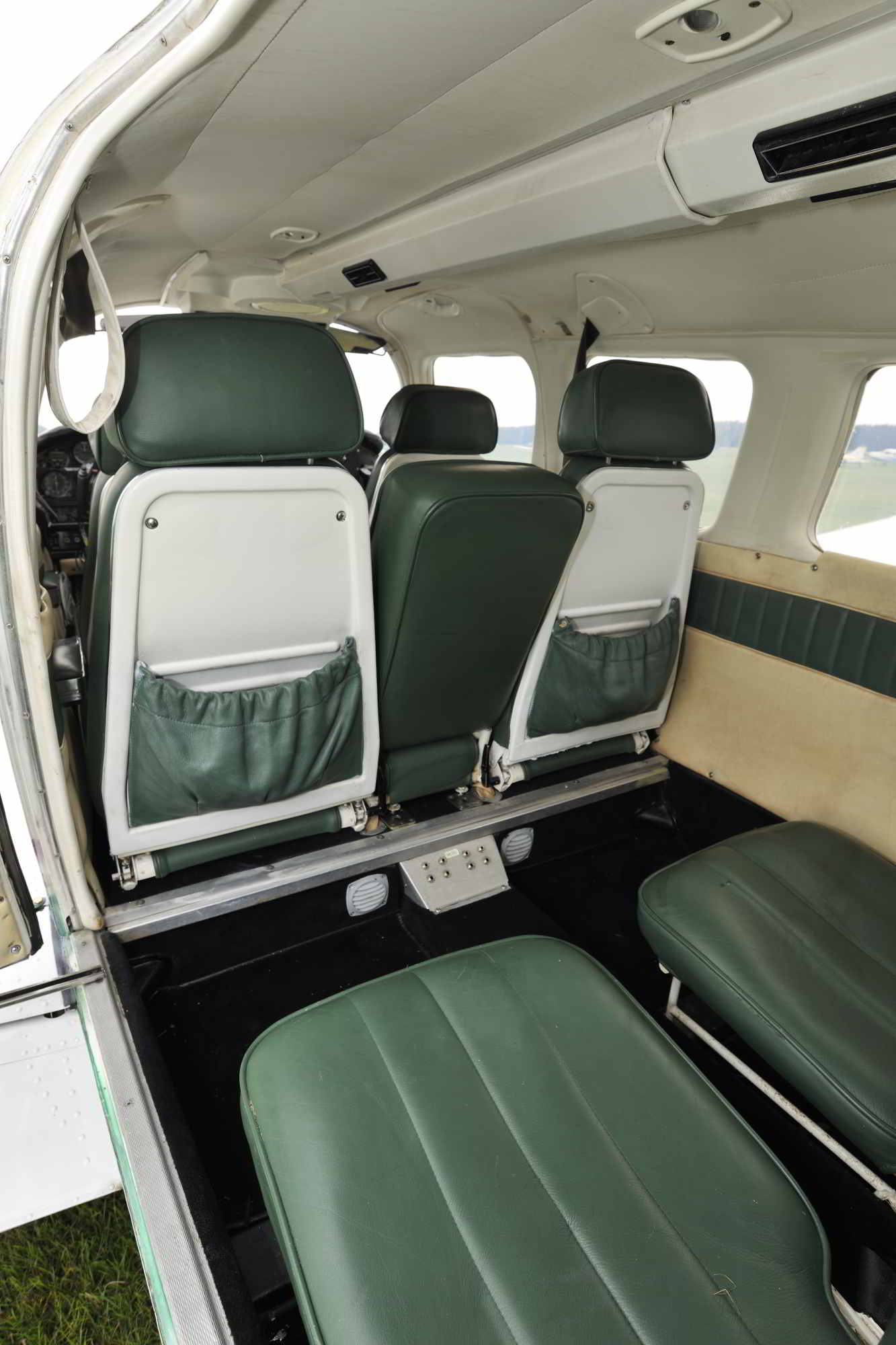

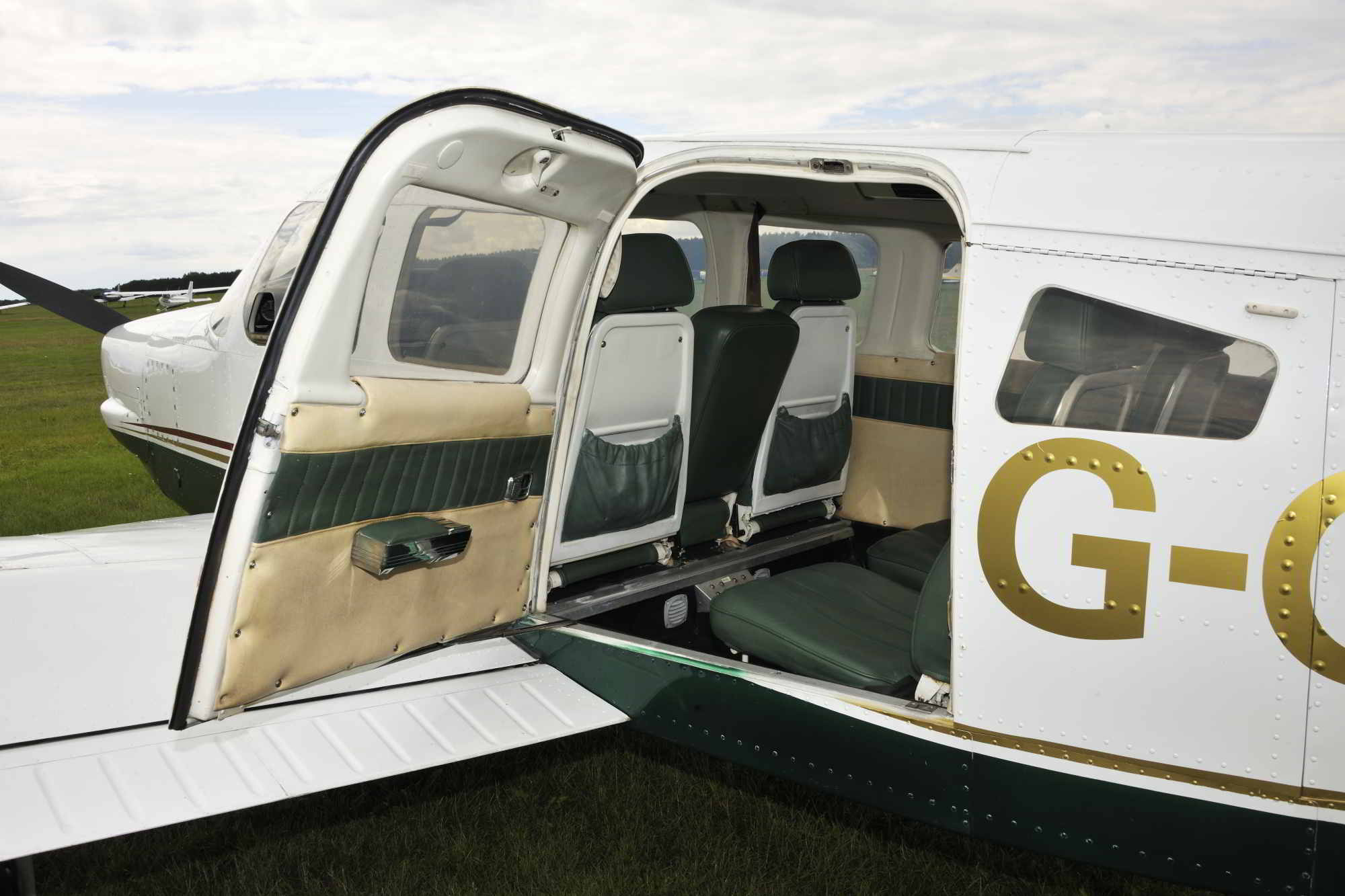

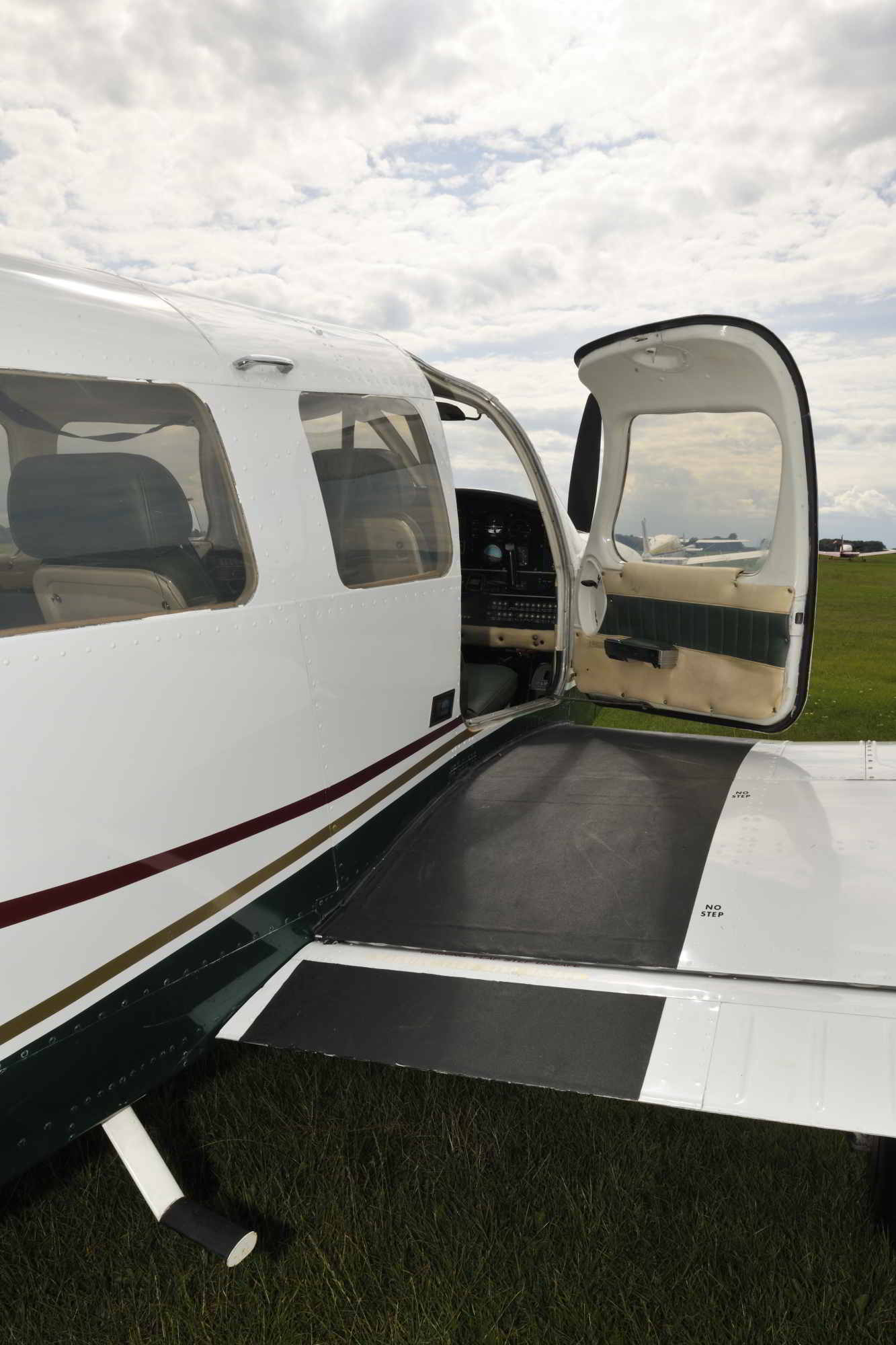

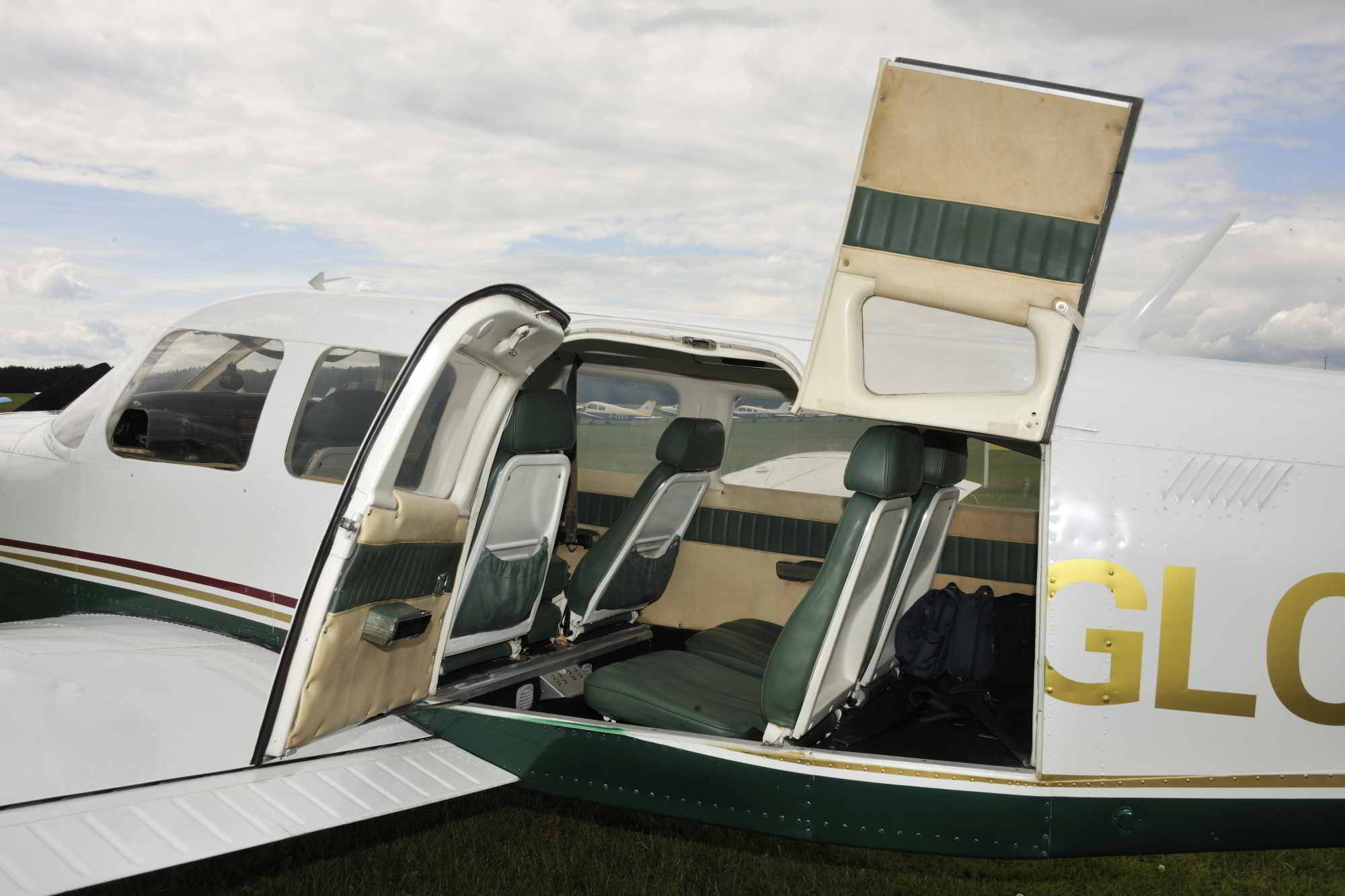

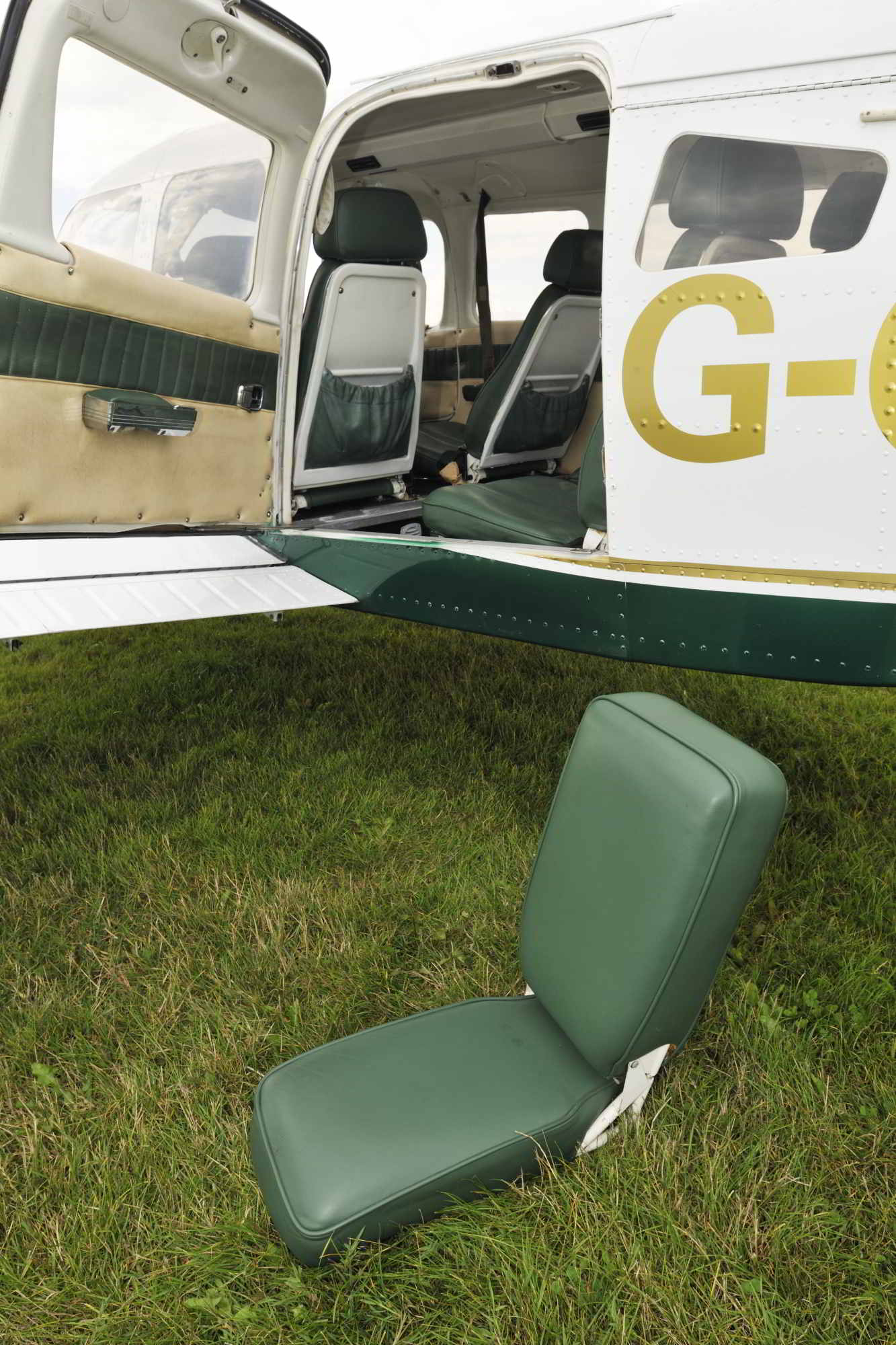

New LP Aero Windscreens and Windows Fitted in 2024 IFR Classified 6 Leather Seats with 7th Middle seat Forward Facing
Minimum Inspection Program: PART M-L Annual Inspection: Arch / Annual Due June 2025 New Batteries 2023
New Upgraded Start Motor Fitted Jan 2025
Extensive Aircraft Records with no damage history
All Ads complied with inc Spar inspection
Aircraft specification
Capacity: up to seven occupants Length: 27 ft 9 in (8.46 m) Wingspan: 32 ft 10 in (10.01 m)
Height: 9 ft 6 in (2.90 m) Wing area: 174.5 sq ft (16.21 m2) Aspect ratio: 6.2 Empty weight: 1,980 lb (898 kg) Gross weight: 3,600 lb (1,633 kg)
Fuel capacity: 94 US gal (360 L)
usable Powerplant: 1 × Lycoming IO-540-K1G5D 6 cylinder, direct drive, horizontally opposed, air cooled engine, 300 hp (220 kW) at 2700 rpm Propellers: 2-bladed Hartzell Constant Speed, 6 ft 8 in (2.03 m) diameter
Performance Maximum speed: 157 kn (181 mph, 291 km/h) Max cruise at 75% power and 7500 feet
Cruise speed: 142 kn (163 mph, 263 km/h) at 65% power and 6000 feet
Range: 875 nmi (1,007 mi, 1,620 km) at 55% power, 9000, 45mn reserve – 975 nmi (1,806 km) with no reserve
Endurance: 7 hours at 55% power, SL, 45mn reserve – 7h¾ with no reserve Service ceiling: 15,000 ft (4,600 m)
Rate of climb: 1,000 ft/min (5.1 m/s) 3600lb, SL, gear up, full throttle, 92 kn
Fuel consumption: 0.57[a] lb/mi (0.16 kg/km)
13.8 US gal (52 L)/h at 142 kn (263 km/h) TAS, 6000, 65% power, ISA
